| Engine | |||

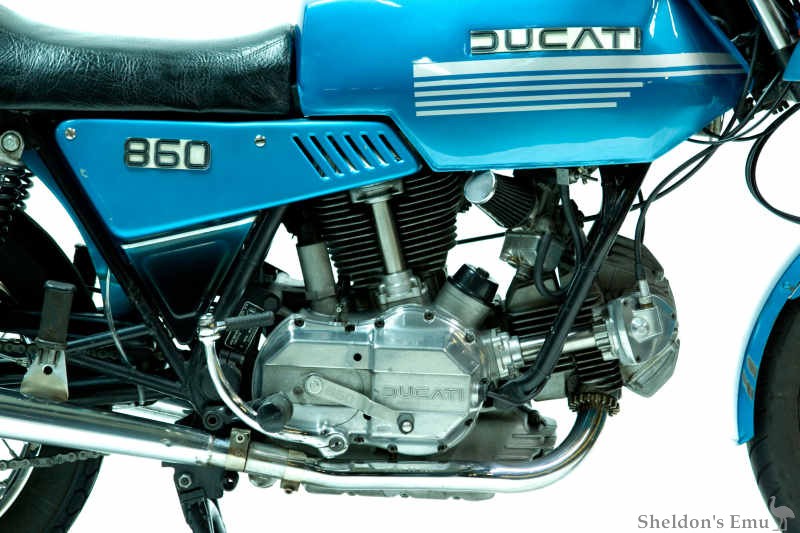

| Configuration | 90° L twin, bevel drive SOHC, aircooled. | Lubrication | Geardriven pump in separate alloy housing, filtered both sides. |
| Bore & Stroke | 86 x 74.4 mm | Ignition | |
| Capacity | 864cc | Charging system | 200 w alternator, 12v 32ah battery |
| Compression Ratio | 9.8:1 | Starter | Kick and Electric start. |
| Maximum Power | |||
| Maximum Torque | Transmission | Helical cut primary gears | |
| Fuel | Dell'Orto PHF 32mm | Clutch | multi-plate wet clutch |
| Gearbox
5 speed box, left-hand shift. |
|||
| Chassis | |||
| Frame | Steel open-cradle one-piece frame | Wheels | 40 spoke wire wheels front & rear, chromed steel rims. |
| Dimensions
Weight:
Wheelbase:
Length:
|
200 kg dry 1500mm 220mm |
Tyres | 3.50 H 18 front
4.00 H 18 rear |
| Front Suspension | Oil damped telescopic forks | Brakes | Dual 280mm solid cast iron discs
200mm rear drum Twin piston Brembo calipers front & Rear. |
| Rear suspension | Swinging arm, Marzocchi | Fuel Capacity | 18 Litres |
| Colour Scheme | |||
| Performance | 195 kph approx.
13 sec standing quarter |
