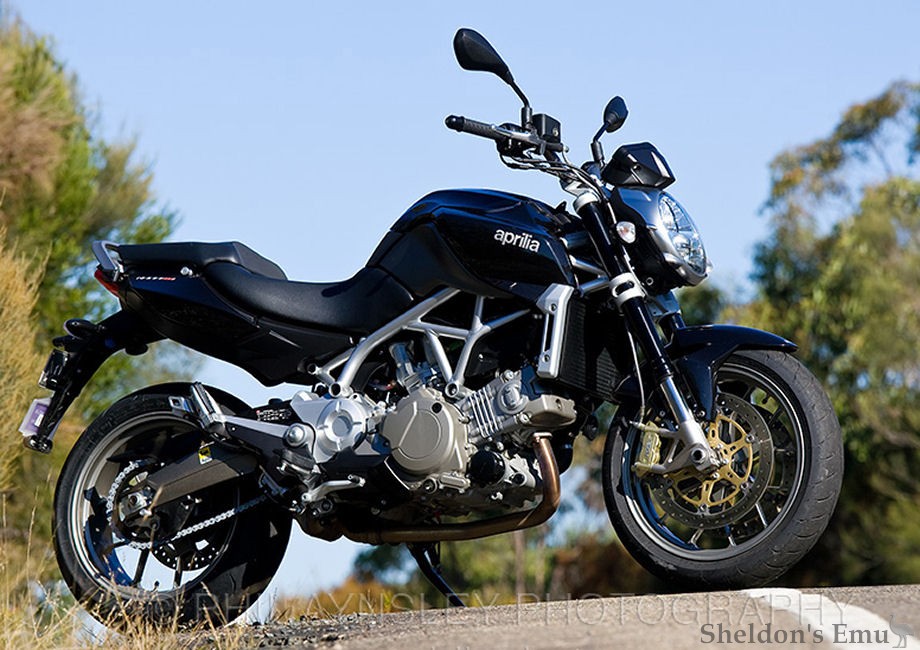

The innovative 839cc Mana was introduced in 2008 and showcased an advanced CVT with several electronic ride modes. Operated either in "full auto" with three modes were available: Touring, Sport & Rain or manually via a sequential, electronic "7 speed" system. A parking brake was fitted. Other features included an under seat fuel tank and a large storage area in the normal tank position. 76hp at 8,000rpm. Dry weight 205kg.

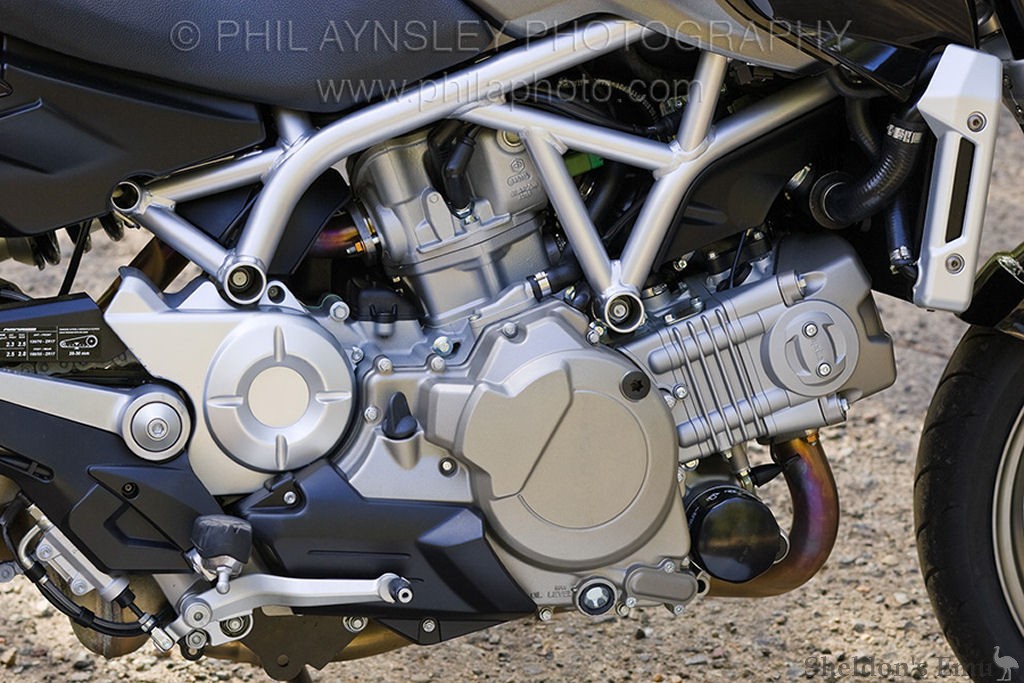

Engine: Aprilia Four stroke longitudinal 90° V twin. Liquid cooling. Single overhead cam with chain drive, four valves per cylinder.
Bore x stroke: 88 x 69 mm
Total displacement: 839.3 cc
Compression ratio: 10.5: 1
Maximum power at crank: 55.1 kW (75 HP) at 7250 rpm.
Lubrication: Dry sump with separate oil reservoir.
Maximum torque at crank: 7.79 kgm (76.5 Nm) at 8000 rpm.
Fuel: Unleaded petrol.
Fuel system: Integrated engine management system. Weber Marelli electronic fuel injection with one 38 mm throttle body.
Exhaust: Two in one system in 100% stainless steel with three-way catalytic converter and Lambda probe
Ignition: digital electronic ignition, with two spark plugs per cylinder, integrated with fuel injection Starting: Electric
Generator: 450 W at 6000 rpm.

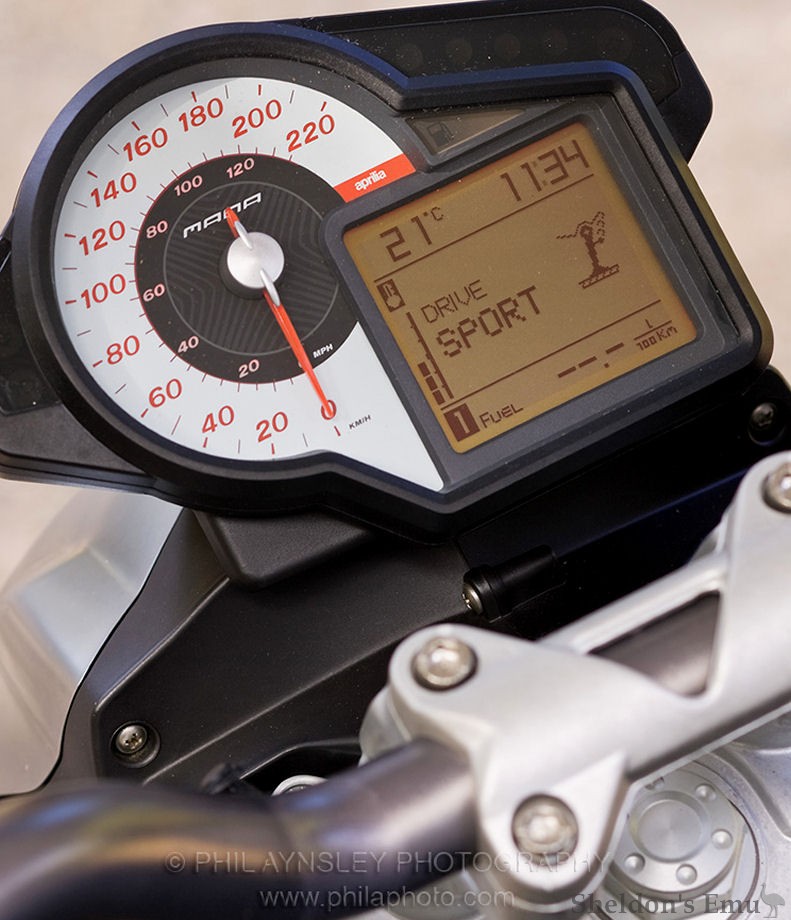

Gearbox: Sequential with manual or automatic mode selectable by the user. 7 ratios in manual mode. 3 maps (Touring, Sport, Rain) in automatic mode. Gear change by pedal or handlebar command.
Clutch: Automatic
Primary drive: Belt
Final drive: Chain
Frame: High strength steel trellis
Front suspension: Ø 43 mm upside-down fork. Wheel travel: 120 mm. Rake / Trail: 24° / 103 mm
Rear suspension: Aluminium alloy single-piece swingarm hydraulic shock absorber adjustable in spring preload and rebound damping. Wheel travel: 125 mm.
Brakes:
Front: double stainless steel floating disc (Ø 320 mm). Radial calipers with four pistons.
Rear: steel disk (Ø 240 mm). Single piston caliper.
Wheels / Tyres: Aluminium alloy. Front: 3.50 x 17 / 120/70 R 17 Rear: 6.00 x 17 / 180/55 ZR 17
Dimensions:
L x W x H 2080 mm; 800 mm (at handlebars); 1130 mm
Seat height: 800 mm
Wheelbase: 1463 mm
Tank capacity: 16 litres
Sources: Introduction and images courtesy Phil Aynsley. Specifications John Sample Group.
