1920s
Z-2-G 211 cc 1922-1924 62 x 70 mm, two-stroke 2½ h.p. @ 2.600 rpm, 57 km/h
Z-22 211 cc 1921-1924 62 x 70 mm, two-stroke 2½ h.p. @ 2.600 rpm, 57 km/h
Z-200 198 cc 1928 60 x 70 mm, two-stroke 4½ h.p. @ 3.300 rpm, 80 km/h
K-211 211 cc 1924-1925 62 x 70 mm, two-stroke 2½ h.p. @ 2.600 rpm, 65 km/h
EM-249 249 cc "Einheitsmodell" 1925-1927 62 x 82.5 mm, two-stroke 4½ h.p. @ 3.100 rpm, 80 km/h. Modelled after the Levis, 23,135 were built.
K-249 249 cc 1924-1925 62 x 82.5 mm, two-stroke 3½ h.p. @ 2.600 rpm, 75 km/h
Z-249 249 cc 1923-1924 62 x 82.5 mm, two-stroke 2¾ h.p. @ 2.600 rpm, 70 km/h
EM-300 300 cc 1928 68 x 82.5 mm, two-stroke 8 h.p. @ 3.000 rpm, 90 km/h
Z-300 298 cc 1928-1929 68 x 82.5 mm, two-stroke 9 h.p. @ 3.200 rpm, 90 km/h
1930s & 1940s
Record-1 198 cc 1930-1931
Record-2 198 cc 1930-1931
DB-125 123 cc 1939-1940
DS-125 123 cc 1939-1940
L-125 123 cc 1939-1940
B-170 169 cc 1932
DB-175 175 cc 1932-1933
B-200 198 cc 1932
DB-200 198 cc 1935-1940/1947-1951
DB-200-W 198 cc 1939-1940

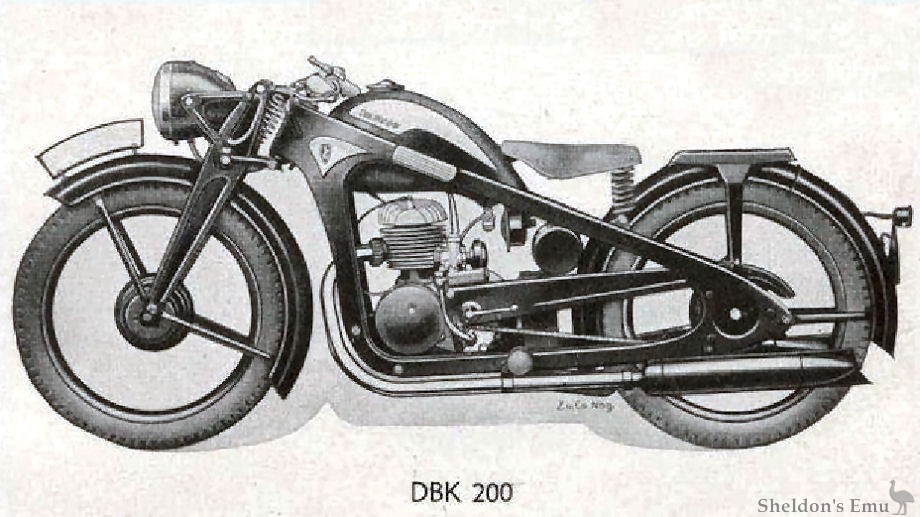

DBK-200 198 cc 1936-1938 198 cc 60 x 70 mm, two-stroke 7 h.p. @ 3.850 rpm, 85 km/h
DBL-200 198 cc 1936
DBT-200 198 cc 1935-1940 with speedometer.
DE-200 198 cc 1933-1935 60 x 70 mm, two-stroke 7 h.p. @ 3.850 rpm, 80 km/h
DL-200 as above
DK-200 198 cc 1935 60 x 70 mm, two-stroke 7 h.p. @ 3.850 rpm, 80 km/h
K-200 198 cc 1933-1934
KK-200 198 cc 1935-1936
200-S 198 cc 1930-1931

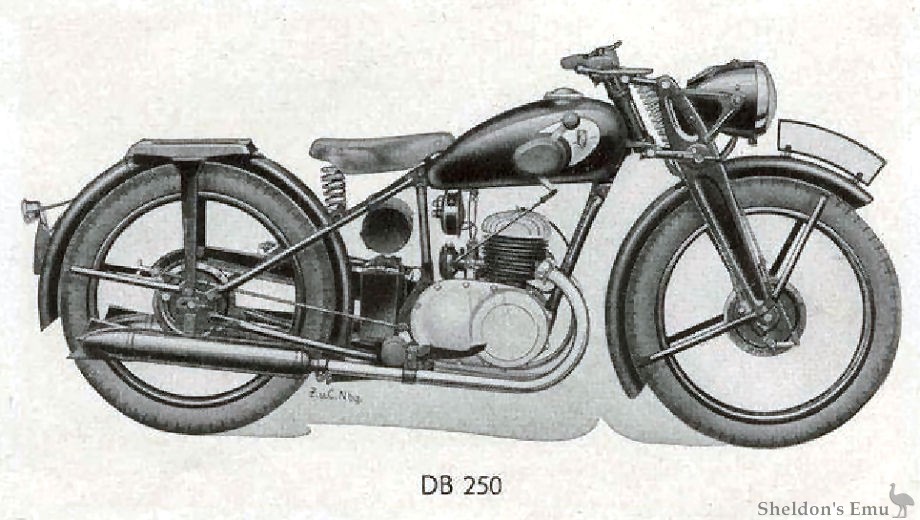

DB-250 247 cc 1937-1940

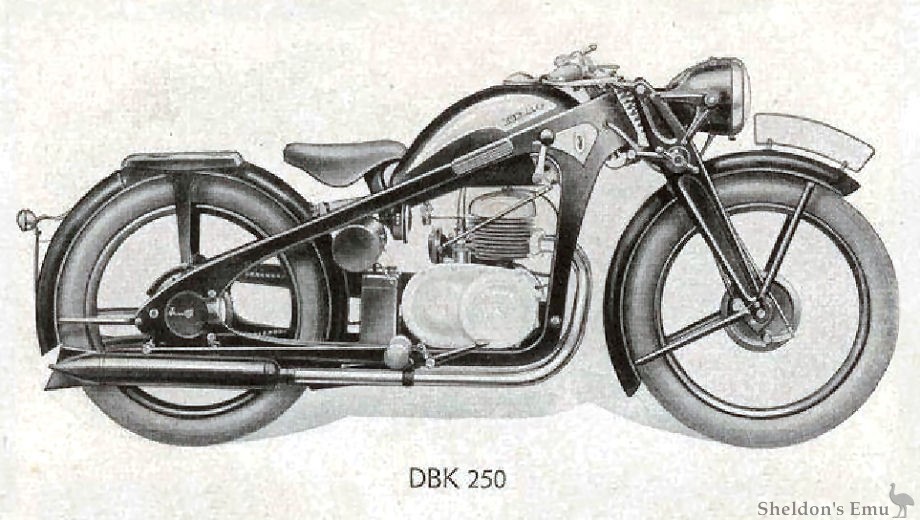

DBK-250 247 cc 1937-1940
S-300 298 cc 1930-1931

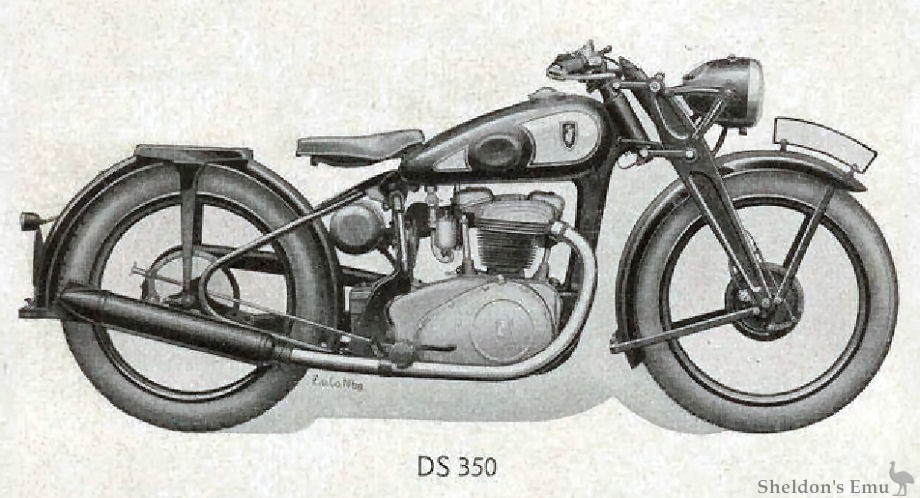

DS-350 346 cc 1937-1940 72 x 85 mm, OHV 17½ h.p. @ 5.200 rpm, 110 km/h
K-350 349 cc 1935-1936
KK-350 349 cc 1936-1937
S-350 345 cc 1932
K-400 398 cc 1933

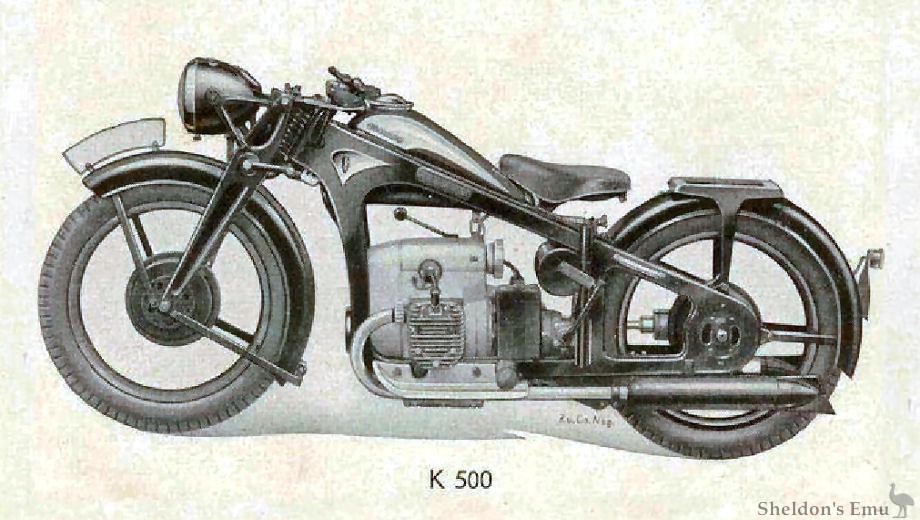

K-500 498 cc 1933-1940 HO twin 69 x 66.6 mm, SV, 13½/16 h.p. @ 4.800 rpm, 105 km/h
K-500-W 498 cc 1939
KKS-500 496 cc 1937-1938 496 cc HO twin 69 x 66.6 mm, SV 16 h.p. @ 4.800 rpm, 140 km/h

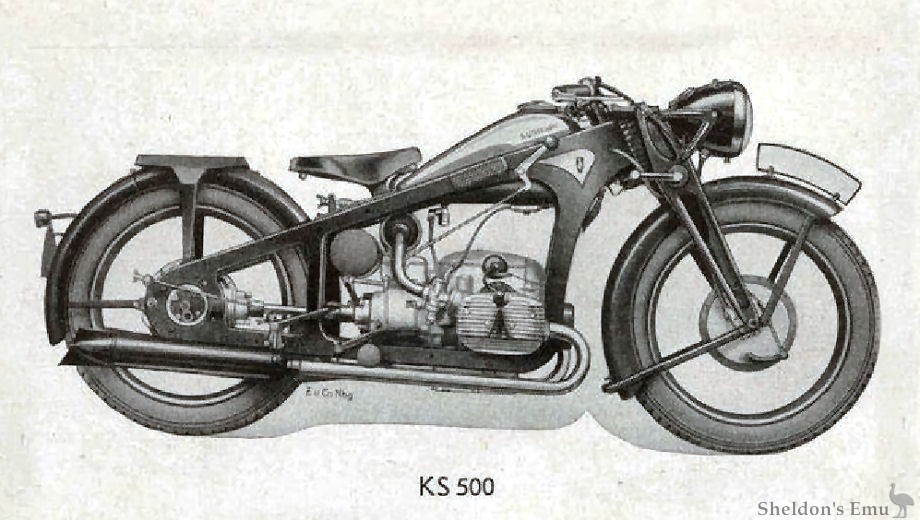

KS-500 496 cc 1936-1939 HO twin 69 x 66.6 mm, SV, 16 h.p. @ 4.800 rpm, 130 km/h
S-500 499 cc 1930-1931
S-500 S 499 cc 1930-1931
K-600 598 cc 1933

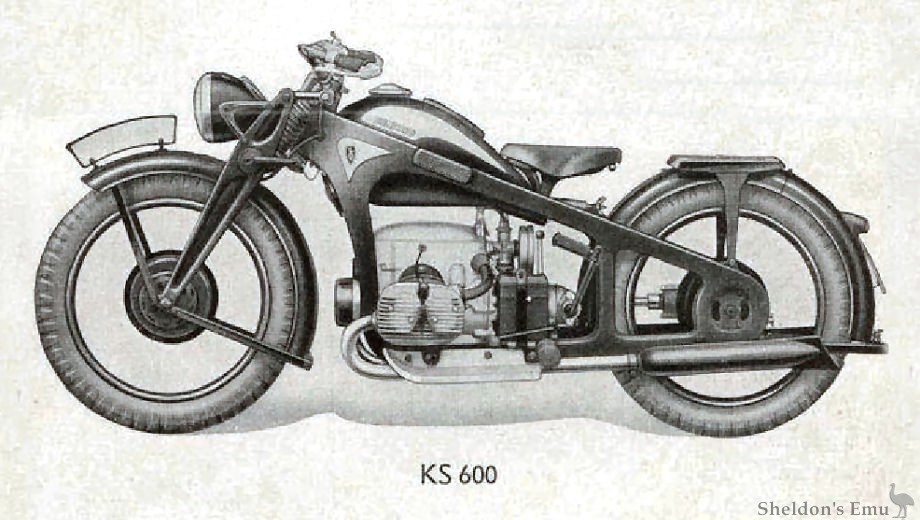

KS-600 597 cc 1935-1941
KS-600 597 cc 1949-1950
KS-600-W 597 cc 1939
N.B. The KS600 has a tool compartment in the fuel tank, which is more bulbous than that of the KS500 sans compartment.
KS-750-W 751 cc 1940-1948 170° flat twin 75 x 85 mm, OHV, 26 h.p. @ 4.000 rpm, 95 km/h

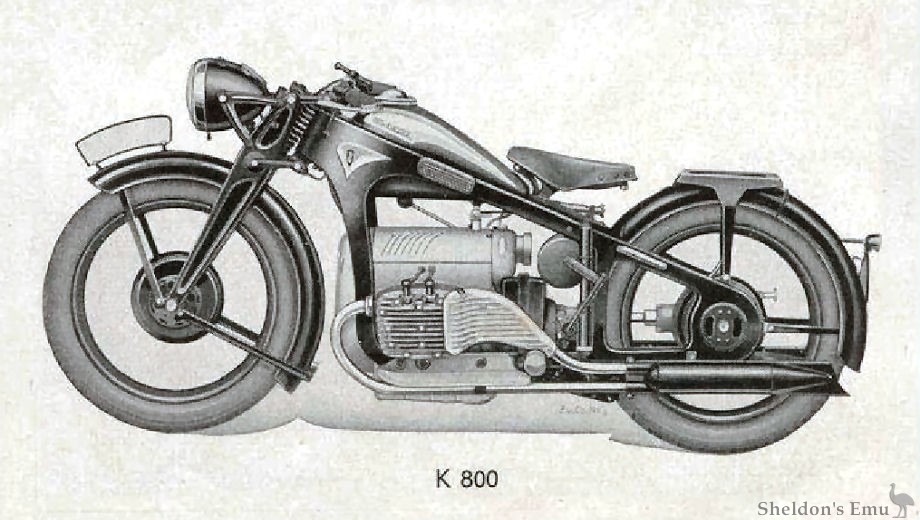

K800 791 cc 1933-1938, HO four, 62 x 66.6 mm, SV, 20/22 h.p. @ 4.300 rpm
K800-W 791 cc 1939
1950s
DB-201 198 cc 1950-1951
201-S 197 cc 1955-1958
DB-202 198 cc 1951-1952
DB-203 198 cc 1952-1953
DB-204 198 cc 1952-1953
DB-205 198 cc 1953-1955
DB-234 198 cc 1953-1955
B-250 247 cc 1953
KS 601 1950-1957 597 cc HO twin 75 x 67.6 mm, OHV, 28 h.p. @ 4.700 rpm, 135 km/h
KS 601 SP 1952-1958 597 cc HO twin 75 x 67.6 mm, OHV, 34 h.p. @ 4.700 rpm
KS 601 Elastic 1957-1958 597 cc HO twin 75 x 67.6 mm, OHV, 38.8 h.p. @ 6000 rpm
1950s, 60s, 70s & 80s
KM 48 Kombimot
KM 50 Kombimot Knirps
25-5 Combinette 1 (1956)
266-010 Lastenmoped ( 1966)
400 Combinette
401 Combinette
402 Combinette
403 Combinette
404 Combinette
405 Combinette
406 Combinette
407 Combinette
408 Combinette
409 Combinette
410 Combinette
411 Combinette
412 Combinette
422 Combinette
423 Combinette S
424 Combinette
425 Falconette (1958-59)
428 Combinette
428-001 Combinette
428-002 Combinette
428-005 Combinette
428-010 Combinette
428-012 Combinette
428-016 Combinette
428-10L1 Combinette
428-40L0 Combinette
428-40L1 Combinette
428-41L0 Combinette
428-41L1 Combinette
428-41L2 Combinette
428-41L3 Combinette
428-41L4 Combinette
428-41L5 Combinette
428-41L6 Combinette
429 Super Combinette
433 Super Combinette
433-002 Super Combinette
433-004 Super Combinette
433-016 Super Combinette (1964)
433-022 Super Combinette
433-102 Super Combinette
433-104 Super Combinette
433-106 Super Combinette
433-150 Super Combinette
433-151 Super Combinette
433-152 Super Combinette
433-40L0 56 (1966)
434-01L0 M 50
434-02L0 Mofa 25
434-02L1 Mofa 25
434-03L0
434-07L0
434-11L0
434-12L0 M50
435 Falconette
437-100
437-220 Falconette
438 Falconette (GB)
439-01L0 Mofa
440-03L0 C50
440-03L1 C50
440-10 C50 (V.4)
441 Combinette
441-01L0 C 50 Super (1969-1972)
441-02L0 C 50 Super
441-03L0 C 50 Super
441-04L0 C 50 Super
441-05L0 C 50 Super (V.2)
441-05L1 C 50 Super
441-05L2 C 50 Super
441-05L3 C 50 Super
442-L0 TS ZD
442-01L0 Automatik-Mofa
442-03L0 Automatik-Mofa
442-11L0 Automatik-Mofa
442-12L0 Automatik-Moped
442-12L1 (1978)
442-13L1
442-13L2
442-13L5
442-13L6
442-14L1
442-16L0 Automatik-Moped
442-16L1 Automatik-Moped
442-17L0 Automatik-Mofa
442-17L1 Automatik-Mofa
444-01L0 Automatik-Mofa
444-01L1 Automatik-Mofa
444-01L6 Automatik-Mofa
444-01L7 Automatik-Mofa
444-02L0 Automatik-Mofa
444-02L5 Automatik-Mofa (1974)
444-02L7 Automatik-Mofa
444-02LU Automatik-Mofa
444-04L0 Automatik-Mofa
444-04L5 Automatik-Mofa
444-04lu Automatik-Mofa
444-06 - Automatik-Mofa
444-31L0 Automatik-Mofa
444-31L5 Automatik-Mofa
444-32L0 Automatic-Mofa
446-L0 TS ZD
446-20L0 ZD 30
446-21L0 ZD 10
446-21L1 ZD 10
446-30L0 ZD 40
446-30L1 ZD 40
446-40L0 ZD 20
446-40L1 ZD 20
446-42L0 TS ZD 25
446-42L2 TS ZD 50
446-45L0 ZD 40
447-10L0 ZR 30
447-11L0 ZR 10
447-11L1 ZR 10
447-02L0 ZR 20
447-02L1 ZR 22
447-02L2 ZR 20
448-01L0 CS 50
448-01L1 CS 50
448-01L3 CS 50
448-02 CS 25 Madras
448-05L1 Sprinter
448-05K1 Sprinter
448-11L0 hai 50
448-11L1 hai 50
448-14L0 CS 25
448-14L1 CS 25
448-15L0 hai 25
448-15L1 CX 25
448-16L0 hai 50
448-170 CX 25
448-310 CS 50
460-01L0 ZX 25
460-01L3 ZX 25
460-01L4 X 25
460-02L0 ZA 25
460-02L1 ZA 25
460-02L4 A25
460-03L0 ZA 40
460-03L3 ZA 40
460-04L0 ZL 25
460-04L1 ZL 25
460-05L0 ZS 25
460-05L1 ZS 25
460-090 ZE 40
460-09L1 ZE 40
462-020 Star 1
462-021 Star 2
500 Trophy 175 S - (1961)
502 Trophy 250 S - (1961)
510-101 Super Combinette KS
510-120 Sport Combinette KS
510-171 Sport Combinette KS
510-220 Falconette KS 50
510-224 Gs 50
510-270 Falconette KS 50
510-275 SuperFalconette KS 50
511-320 Falconette KS 75
511-321 Falconette KS 75
511-324 Falconette KS 75
511-327 Gs 75
512 Gs 75
512-320 KS 75 (1964)
512-324 KS 75
514-02L1 KS 100
514-07L0 Scrambler 100 8 (1966-67)
514-32L0 KS 100 (1963-66)
514-320 KS 100 (1963-66)
515-001 KS 50 Super
515-002 KS 50 Super
515-003 Sport Combinette
515-004 Sport Combinette
515-006(NL) SuperCombinette DeLuxe
515-010(Norw.) SportCombinette
515-011((SE)) SportCombinette
515-015(Schweiz) KS 50
515-017 (Export) SportCombinette
515-024 (Schweiz) KS 50
515-030 (Export) SportCombinette
515-032 (Schweiz) KS 50 Super
515-041 Sport Combinette
515-044 (Norw.) SportCombinette
515-045 ((SE)) SportCombinette
515-047 (Export) KS 50
515-048 (Export) KS 50
515-050 (Export) SportCombinette
515-051 (Schweiz/Belgien) KS 50 Super
515-052 (Export) KS 50 Super
515-053 ((Greece)n) KS 50
515-054 ((Greece)n) KS 50
515-056 (Schweiz/Belgien) KS 50 Super
515-058 (Export) KS 50 Super
515-060 (Export) KS 50 Super
515-061 KS 50 Super
515-64 Super Combinette
516-001 KS 50 Super-SL
516-005 KS 50 Super-SL
516-03 Sport KS 50 (V.7)
516-04 Sport KS 50
516-05 Sport KS 50
517-01L0 KS 50 Super-SL
517-02L1 Sport Combinette
517-02L5 Sport C 50 (V.4)
517-02L8 Sport C 50 (V.4)
517-04L2 KS 50 Sport Exp.
517-05L5 Super Combinette DeLuxe
517-05L0 CS50
517-05L1 CS 50
517-05L2 Super Combinette NL (1967)
517-05LA CS 50
517-05LC CS 50
517-05L7 KS 50
517-05L8 C50
517-05L9
517-06L0 Sport KS 50
517-06L5 Sport KS 50
517-06L7 KS 50
517-06LJ 19 (1969)
517-08L0 Super Combinette (BE)
517-09L1 Super Combinette (BE)
517-10L0 Super Combinette (SE)
517-10L6 KS 50 SuperSport (V.2)
517-13L0 KS 50 Super Export
517-13L1 KS 50 Super (Greece)
517-13L2 KS 50 Super (Greece) 36 (1967)
517-14L0 KS 50 Super SL Exp.
517-14L1 KS 50 Super SL Exp.
517-14L6 KS 50 Super SL
517-16 KS 50 SuperSport 60
517-20L0 Super Sport KS 50 (1969-71)
517-20L2 Super Sport KS 50 (1969-71)
517-20lb Super Sport KS 50 (1971-72)
517-20lc Super Sport KS 50 (1971-72)
517-20ln Super Sport KS 50
517-20lp Super Sport KS 50
517-20lr Super Sport KS 50
517-20ls Super Sport KS 50 (1972)
517-21L0 Sport C 50 (V.5) (1972-)
517-21la Sport C 50 (V.5)
517-21lb Sport C 50 (V.5) (1975-76)
517-218 Sport C 50
517-23L1 C 50 Sport
517-23L3 C 50 Super
517-29 GTS 50
517-30L0 KS 50 SuSp (1973)
517-30LA KS 50 SuSp (1975)
517-34L0 GT 50
517-34L5 GT 50
517-35L0 GTS 50
517-35L1 GTS 50
517-35L5 GTS 50
517-35LA GTS 50 Su
517-35LB SuSp
517-35LC GTS 50
517-35LD SuSp
517-35LF KS 50 SuSp Grand Deluxe
517-35LE GTS 50 SuSp
517-35LH KS 50 SuSp
517-35LG GTS 50 SuSp
517-36LA SuperSport WC
517-36L5 KS 50 WC
517-39L0 GTS 50
517-40L0 GTS 50
517-40L5 GTS 50
517-50L0 WC KS 50
517-50la WC KS 50
517-50lm KS 50
517-51L0 Cross KS 50
517-51la Cross KS 50
517-51lb Super Sport KS 50
517-51le Cross KS 50
517-51lg Super Sport KS 50
517-51lh Cross KS 50
517-51lp Sport KS 50
517-52L0 WC KS 50
517-52la WC KS 50 (1976)
517-53L1 SupercSport KS 50
517-53L0 Cross KS 50
517-53la Cross KS 50
517-53lb Super Sport KS 50 (1975-76)
518-01L0 KS 100 (1970-)
518-01L5 KS 100
518-02L0 KS 100
518-02L7 KS 100
518-03L1 KS 100
518-03L5 KS 100
518-04L1 KS 100
518-04L3 KS 100
518-04L5 KS 100
518-04LA KS 100
518-04LC KS 100
518-05L0 KS 100 Sport
518-06L0 KS 100
518-06L5 KS 100
518-08L0 Scrambler 100 USA (1966-67)
518-09L0 SixDays
518-09L0 KS 100
518-09L5 KS 100
518-20L0 KS 100
518-20L6 KS 100
518-23 KS 100
519-01L0 Scrambler
519-02
520-01L0 Gs 125
520-01L2 Enduro 125
520-01L10 Gs 125
520-01L15 Gs 125
520-01L5 Gs 125
520-02 GS 125 60 (1972)
520-05 GS 100 60 (1970-71)
520-05L0 Gs 125
520-05la Gs 125 (1974-77)
520-05ld GS 125
520-05L1 Gs 125
520-05L5 Gs 125
520-05L6 Gs 125
520-06 Gs 125
520-52LA MC 125 (1972-76)
520-52LE MC 125 (1972-75)
520-52LJ MC 125 (1972-75)
520-52LK MC 125 (1972-75)
520-52LP MC 125 (1972-75)
520-52 GS 125 19 (1976)
520-52L0
521-01L0 Sport KS 125 (1974-77)
521-01L5 Sport KS 125 (1973)
521-03LC KS 125
521-05L0 Sport KS 125
521-06 KS 125 -
521-10L0 KS 125 60
521-40 WC KS 125 (1977-79) (1979-84)
521-41 WC KS 125
521-50 KS 175
521-50L0 KS 175
521-51L0 KS 175
521-51L1 KS 175 (1981)
521-500 KS 175
521-510 KS 175
521-511 KS 175
529-01L0 Sport C 50
529-02 GTS 50
529-02L2 GTS 50
529-02L3 GTS 50
529-02L4 GTS 50
529-02L6 GTS 50
529-02L8 GTS 50 5-Speed
529-02L9 GTS 50 5-Speed
529-03L0 CS 50
529-03L2 CS 50
529-03L4 CS 50
529-05L0 GTS 50
529-05L1 KS 50
529-05L2 GTS 50
529-05L3 KS 50
529-05L4 GTS 50
529-05L5 KS 50
529-05L6 GTS 50
529-05L7 KS 50
529-05L8 GTS 50
530-01L0 WC KS 50 (TT)
530-01L1 WC TT KS 50
530-01L2 WC TT KS 50
530-01L4 WC TT KS 50
530-012 WC TT KS
530-50L0 KS 50 SuperSport
530-50L0 KS 50 SuperSport (TT)
530-51L0 Sport KS
530-05L0 KS 80
530-07L0 KS 80 Touring (Felgen)
537-01L0 KS 80 Super
537-011 Sport KS 80
537-012 KS 80 SuperSport
540-01L0 K 80
540-01L1 K 80
540-12 GTS 50
540-12 KS 50
540-14L0 WC KS 50
540-150 SX 80 (enduro)
540-180 GTS 50 watercooled
540-19 CS 50
540-200 K 80 watercooled
551-025 Bella 200
560-025 Bella 175S
561-003 R 50 (1964-76)
561-004 RS 50 (1964)
561-006 RS 50
561-051 R 50
561-052 R 50
561-060 RS 50 Super
561-06L0 RS 50 Super
561-06L1 RS 50
561-06LB RS 50 Super
Star 1 (1984)
Star 2 (1984)
Sources: A. Vassiliadis, zundappks601.com, Farben-Schiessl, et al.
See also Zundapp Resources
