Monet & Goyon Models

1919-1940

Monet-Goyon-1930s

1919 Auto-Roue 117cc 2T

1919 Velauto Type T

1921 type U Dame 117cc

1921 type U 117cc

1925 Velauto 2 CV 147cc Villiers

1926 MC, MCC 350cc M.A.G. four-stroke

1926 MCS, MCSC 350cc M.A.G. four-stroke

1927 MCSC2 350cc M.A.G. four-stroke

1927 350cc Type RC4C Villiers two-stroke

1928 MF 250cc

1928 type N 350cc four stroke M.A.G.

1929 350cc Type B Villiers Two-stroke

1929 NF 350cc four stroke M.A.G.

1929 MT 250cc

1930s

1930 NF 350cc MAG

1931 Trimonet

1931 M3, ML3 250cc

1932 MG25 250cc

1932 HA

1933

1933 MG10 2T, B/S 50/50 mm, 100cc single-speed. Tyres: 600/55

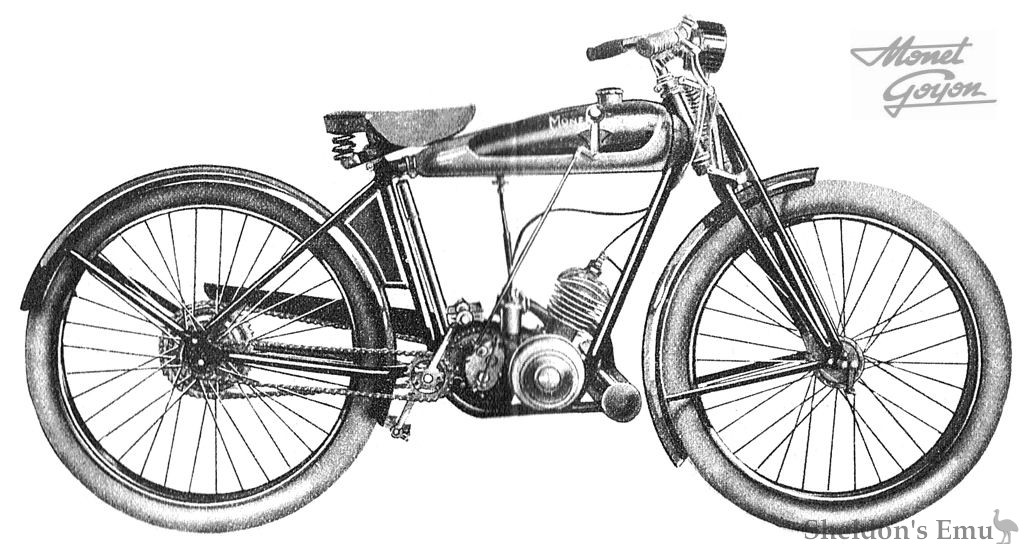

1933 M11 2T, B/S 50/50 mm, 100cc 2-speed. Tyres: 600/55

1933 C15 2T, B/S 55/62 174cc 2-speed. Tyres: 25/3

1933 D15 2T, B/S 55/62 174cc 3-speed. Tyres: 25/3

1933 Z3D2 2T, B/S 55/62 174cc 2-speed. Tyres: 25/3

1933 ZD3 2T, B/S 55/62 174cc 3-speed. Tyres: 25/3

1933 C17 2T, B/S 57/67 175cc 3-speed. Tyres: 25/3

1933 D17 2T, B/S 57/67 175cc 3-speed. Tyres: 25/3

1933 MG25 2T, B/S 57/70 mm, 250cc 3-speed. Tyres: 25/3

1933 O25 2T, B/S 63/80 mm, 250cc 3-speed. Tyres: 25/3

1933 M2 SV, B/S 63.5/78 mm, 250cc 3-speed. Tyres: 25/3

1933 M4 SV, B/S 75/78 mm, 350cc 3-speed. Tyres: 26/3.50

1933 NF SV, B/S 72/85 mm, 350cc 3-speed. Tyres: 26/3.50

1933 GA OHV, B/S 72/85 mm, 350cc 3-speed. Tyres: 26/3.25

1933 KA SV, B/S 82/94 mm, 500cc 3-speed. Tyres: 700/100

1933 HA OHV, B/S 82/94 mm, 500cc 3-speed. Tyres: 26/3.25

1934

1934 M10 2T, B/S 50/50 mm, 98cc single-speed. Tyres: 600/55

1934 M11 2T, B/S 50/50 mm, 98cc 2-speed. Tyres: 600/55

1934 M18 2T, B/S 57/67 175cc 3-speed. Tyres: 24/2.375

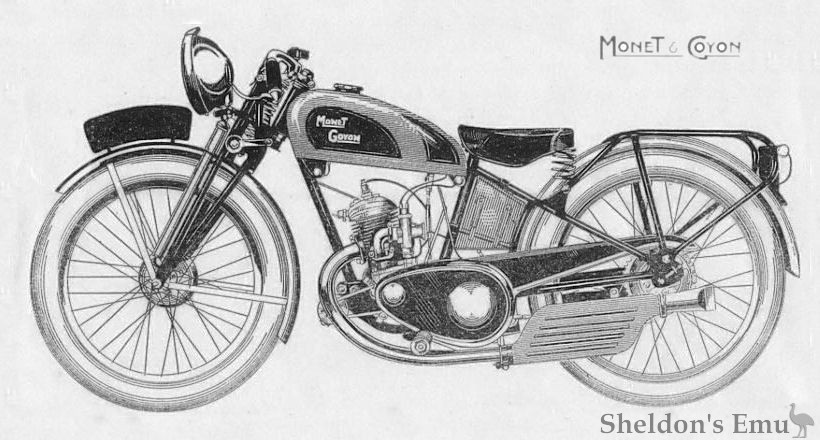

1934 D17L 2T, B/S 57/67 175cc 3-speed. Tyres: 25/3

1934 O25L 2T, B/S 63/80 mm, 250cc 3-speed. Tyres: 25/3

1934 L SV, B/S 63.5/78 mm, 250cc 3-speed. Tyres: 25/3

1934 M2 SV, B/S 63.5/78 mm, 250cc 3-speed. Tyres: 26/3.50

1934 M4 SV, B/S 75/78 mm, 350cc 3-speed. Tyres: 26/3.50

1934 L4 SV, B/S 75/78 mm, 350cc 3-speed. Tyres: 26/3.50

1934 LS4 OHV, B/S 75/78 mm, 350cc 3-speed. Tyres: 26/3.25

1934 GA OHV, B/S 72/85 mm, 350cc 3-speed. Tyres: 26/3.25

1934 KA SV, B/S 82/94 mm, 500cc 3-speed. Tyres: 700/100

1934 HA OHV, B/S 82/94 mm, 500cc 3-speed. Tyres: 26/3.25

1935

1935 LS4S OHV, B/S 75/78 mm, 350cc 4-speed. Tyres: 26/3.25

1935 LS5 OHV, B/S 75/110 mm, 500cc 4-speed. Tyres: 26/3.50

1935 L5 SV, B/S 75/110 mm, 500cc 4-speed. Tyres: 26/3.50

1935 CSG OHV, B/S 72/85 mm, 350cc 4-speed. Tyres: 26/3.25

1935 CSH OHV, B/S 82/94 mm, 500cc 4-speed. Tyres: 26/3.25

1935 CSK SV, B/S 82/94 mm, 500cc 4-speed. Tyres: 700/100

1936

1936 M10T 2T, B/S 50/50 mm, 98cc single-speed. Tyres: 600/55

1936 M11T 2T, B/S 50/50 mm, 98cc 2-speed. Tyres: 600/55

1936 M11S 2T, B/S 50/50 mm, 98cc 2-speed. Tyres: 600/55

1936 M18 2T, B/S 57/67 175cc 3-speed. Tyres: 24/2.375

1936 M18L 2T, B/S 57/67 175cc 3-speed. Tyres: 24/2.375

1936 S17 2T, B/S 57/67 175cc 3-speed. Tyres: 25/3

1936 O25B 2T, B/S 63/80 mm, 250cc 3-speed. Tyres: 25/3

1936 GZ18 2T, B/S 55/62 175cc 2-speed. Tyres: 25/3

1936 GZO 2T, B/S 57/70 mm, 250cc 3-speed. Tyres: 25/3

1936 L3 SV, B/S 63.5/78 mm, 250cc 3-speed. Tyres: 25/3

1936 M2 SV, B/S 63.5/78 mm, 250cc 3-speed. Tyres: 26/3.50

1936 LS3 OHV, B/S 63.5/78 mm, 250cc 3-speed. Tyres: 26/3.25

1936 LS3S OHV, B/S 63.5/78 mm, 250cc 4-speed. Tyres: 26/3.25

1936 L4 SV, B/S 75/78 mm, 350cc 3-speed. Tyres: 26/3.50

1936 M4 SV, B/S 75/78 mm, 350cc 3-speed. Tyres: 26/3.50

1936 LS4 OHV, B/S 75/78 mm, 350cc 3-speed. Tyres: 26/3.25

1936 CSG OHV, B/S 72/85 mm, 350cc 4-speed. Tyres: 26/3.25

1936 LS4S OHV, B/S 75/78 mm, 350cc 4-speed. Tyres: 26/3.25

1936 LS4C OHV, B/S 75/78 mm, 350cc 4-speed. Tyres: 26/3.25

1936 L5 SV, B/S 75/110 mm, 500cc 4-speed. Tyres: 26/3.50

1936 CSH OHV, B/S 82/94 mm, 500cc 4-speed. Tyres: 26/3.50

1936 LS5 OHV, B/S 75/110 mm, 500cc 4-speed. Tyres: 26/3.50

1936 LS5S OHV, B/S 75/110 mm, 500cc 4-speed. Tyres: 26/3.25

1937

1937 M10SP 2T, B/S 50/50 mm, 100cc single-speed. Tyres: 600/55

1937 M10TD Dame 2T, B/S 50/50 mm, 100cc single-speed. Tyres: 600/55

1937 M11SP 2T, B/S 50/50 mm, 100cc 2-speed. Tyres: 600/55

1937 M11STD Dame 2T, B/S 50/50 mm, 100cc 2-speed. Tyres: 600/55

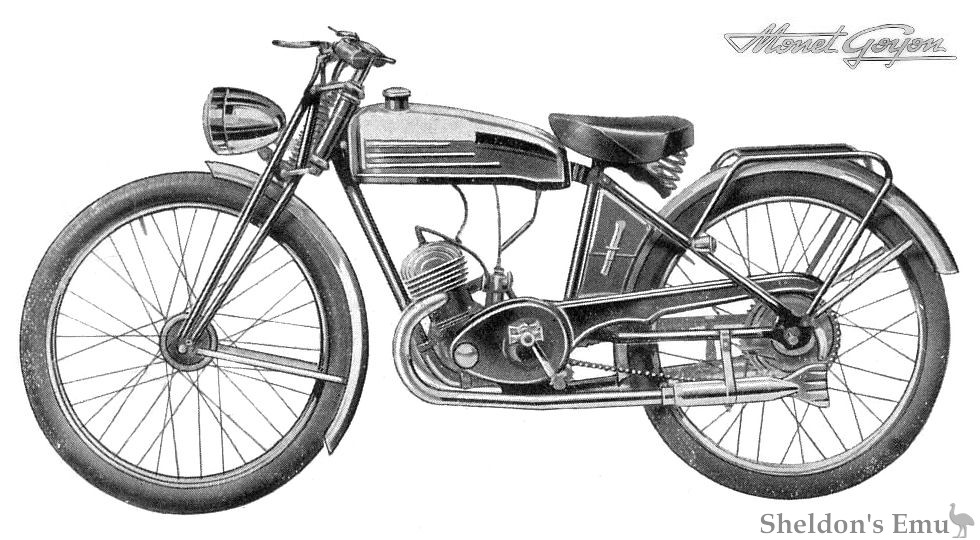

1937 S1 2T, B/S 50/50 mm, 100cc single-speed. Tyres: 600/55

1937 S2 2T, B/S 50/50 mm, 100cc 2-speed. Tyres: 600/55

1937 MIBT 2T, B/S 56/70 mm, 172cc 3-speed. Tyres: 24/2.375

1937 M18D3 Dame 2T, B/S 56/70 mm, 172cc 3-speed. Tyres: 24/2.375

1937 S17 2T, B/S 56/70 mm, 172cc 3-speed. Tyres: 25/3

1937 RL3 SV, B/S 63.5/78 mm, 250cc 3-speed. Tyres: 25/3

1937 RLS3 OHV, B/S 63.5/78 mm, 250cc 3-speed. Tyres: 26/3.25

1937 PL4 SV, B/S 75/78 mm, 350cc 3-speed. Tyres: 26/3.25

1937 RL4 SV, B/S 75/78 mm, 350cc 3-speed. Tyres: 26/3.50

1937 PLS4 OHV, B/S 75/78 mm, 350cc 3-speed. Tyres: 26/3.25

1937 PLS4 OHV, B/S 75/78 mm, 350cc 4-speed. Tyres: 26/3.25

1937 RLS4 OHV, B/S 75/78 mm, 350cc 3-speed. Tyres: 26/3.30.??

1937 CSG OHV, B/S 72/85 mm, 350cc 3-speed. Tyres: 26/3.30.??

1937 PL5 SV, B/S 75/110 mm, 500cc 3-speed. Tyres: 26/3.25

1937 RL5 SV, B/S 75/110 mm, 500cc 3-speed. Tyres: 26/3.50

1937 PLS5 OHV, B/S 75/110 mm, 500cc 3-speed. Tyres: 26/3.25

1937 RLS5 OHV, B/S 75/110 mm, 500cc 3-speed. Tyres: 26/3.25

1937 GZO 2T, B/S 63/80 mm, 250cc 3-speed. Tyres: 25/3

1939

1939 TMPA 2T, B/S 50/50 mm, 98cc 3-speed. Tyres: 25/3

1939 GZO 2T, B/S 63/80 mm, 249cc 3-speed. Tyres: 25/3

1940

1940 S3G 2T, B/S 50/50 mm, 98cc 3-speed. Tyres: 25/3

1940 AL3 SV, B/S 65.5/78 mm, 248cc 3-speed. Tyres: 25/3

1940 PL4 SV, B/S 75/78 mm, 346cc 3-speed. Tyres: 26/3.25

1940 LS4L OHV, B/S 75/78 mm, 346cc 3-speed. Tyres: 26/3.25


1919-1921
Monet & Goyon Auto-Roue (Auto-Wheel) This is cycle attachment was built under licence and was also available from BSA. The Monet-Goyon version came with 117cc, 119cc and 124cc twostroke engines. The device attached to the rear wheel of a bicycle and gave a top speed of up to 30km/h. Also known as Motor-Wheel and Roue-Motrice.


1919 to 1920. Vélauto Type T

This machine used the Auto-Roue (Auto-Wheel) bicycle engine in a scooter-like machine with a platform on which the rider stood, often with a basket rather than a saddle. The 117cc engine was built under licence to A.W. Wall until 1925, and was also used in their Automouche three-wheelers. The Vélauto was sometimes proclaimed as the world's first scooter, but the Autoped from the United States preceded it in 1916.


1921 to 1923
Monet & Goyon 117cc type U Ladies Model & type U Gent's Model
Four-stroke engine, bicycle pedals. Rigid rear. Single speed, no clutch.


1925

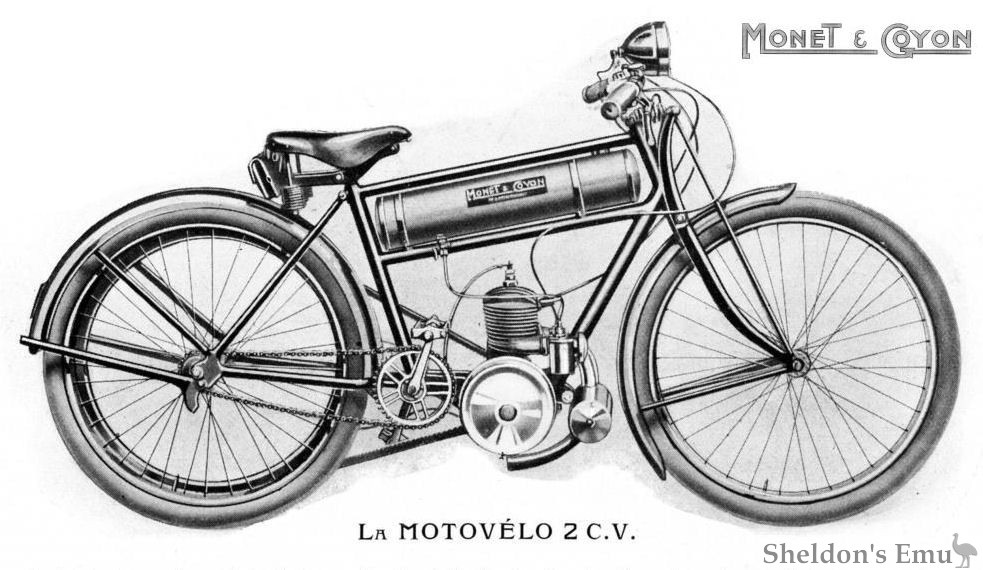

The Velauto 2 CV received a 147cc Villiers engine. Later, the Super Velauto had a 270cc Villiers.


1927

Monet-Goyon presented their BL 350 at the Paris Salon in 1927. Powered by a Villiers 344cc inline-twin engine, and it appeared in their 1929 catalog. Villiers ceased production of the engine the same year.


1928 to 1931
Monet & Goyon Type MF 250cc M.A.G. single cylinder IOE engine with magneto ignition, 3-speed gearbox. Tubular frame, rigid rear.
IOE

Inlet Over Exhaust

Aka the F-Head, the IOE system was widely used in early four-stroke engines. Italiano: valvole di aspirazione sopra quelle di scarico; contrapposte.


1929-1931
1929-1931 350cc B Villiers - Types B, BF, BS, BS2.

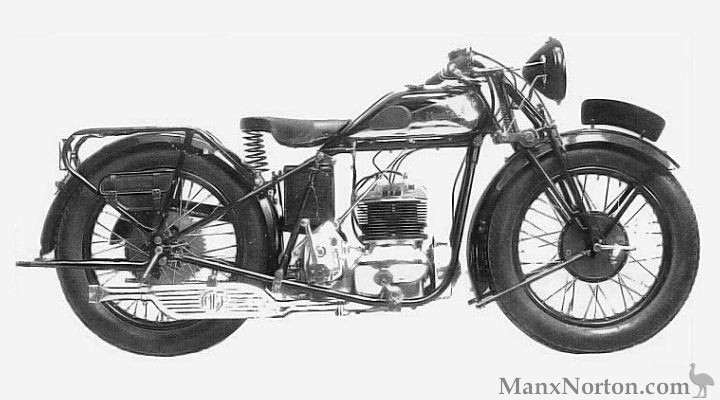

The Villiers 350 MKVIIIB engine was fitted to the RC4C of 1927. For 1929 the Villiers MK IXB was employed, and this one had a flywheel magneto. This engine is found on type B (1928), type BF (1929), type BS (1930) and type BS2 (1931).


1929 to 1930
Monet & Goyon Type MT 250cc M.A.G. Single cylinder IOE engine with magneto ignition, 3-speed gearbox. Gurtner carburettor.

1931 to 1932
Monet & Goyon 250cc Type M3, ML3
(Koehler-Escoffier Type K)
Unit construction single-cylinder four stroke engine built by Monet-Goyon, three-speed gearbox - Gurtner carburettor, magneto ignition, tubular frame - parallelogram forks, rigid rear.
The letter L denotes Light, these models having for instance a narrower front guard and less ornate silencer. L versions were generally a bit cheaper.
In 1933 the M3 was renamed ML2.


1931 to 1932
Monet & Goyon Type MG10 MG10D
Koehler-Escoffier K10, K10D
98cc two-stroke from Villiers using Gurtner or Amal carburettor, single speed. The D versions were "dame" models with open frame. For 1932 they had electric lighting. Options included gearbox and chromium plating.
1933-1935
Monet & Goyon 250cc type ML2, M2
Koehler-Escoffier Type K
ML2 Standard, M2 Luxe
Unit construction single-cylinder sidevalve engine built by Monet-Goyon, three-speed gearbox - Gurtner carburettor, magneto ignition, tubular frame - parallelogram forks, rigid rear.
The Luxe model M2 had an aluminium fishtail muffler and larger mudguards.

1933-1935

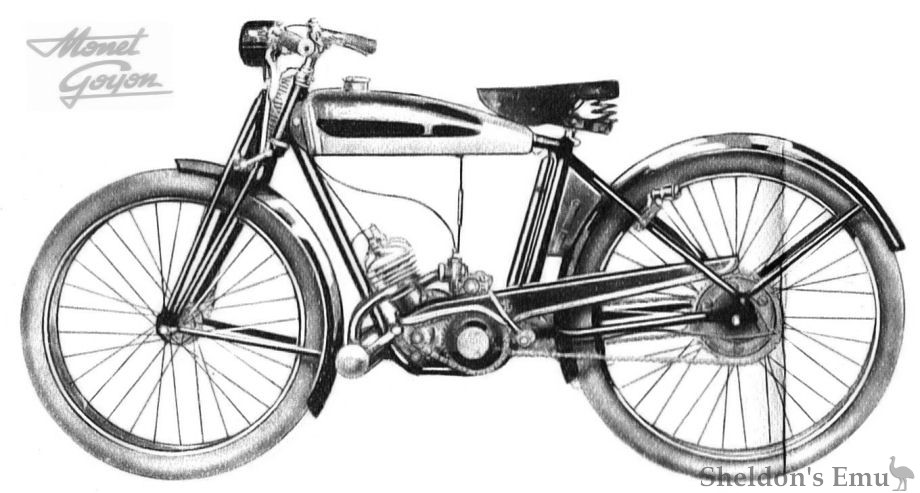

Monet & Goyon M10 1933-1935
M10, M10SP, M10D (Dame)
98cc Villiers BMA

Derived from MG10 1932


1934-1935
Monet & Goyon 250cc type L Tourisme 1934-1935, LB 1935
Koehler-Escoffier Type K
Single-cylinder sidevalve engine built by Monet-Goyon with separate 3-speed gearbox. Max speed 90 km/h.
L3 1933 to 1935
Monet & Goyon 250cc type L3, AL3 1936 to 1942

Koehler-Escoffier Type K
Single-cylinder sidevalve engine built by Monet-Goyon with 3-speed type DD gearbox. Gurtner carburettor, magneto ignition. Tyres 25x3.00


1935 LS3
1935 Monet & Goyon 250cc type LS3 Sport, LS3S Grand Sport 1935, ALS3 1937-1942
Single-cylinder OHV engine built by Monet-Goyon with separate 3-speed gearbox. Optional sidecar.
Postwar, the LS3 was named the R4.
  • Model ALS3
    Engine: Monet-Goyon
    Type: four-stroke
    Capacity: 250cc
    Power: 10.5 h.p.
    Gears: 4
    Top speed: 110 km/h
    Consumption: 3 l / 100km
    Production: 1937-1942
    Koehler-Escoffier equivalent: KALS3
    Source: cyclememory.org


1926 to 1928 Monet & Goyon 350cc type MC, MCC
Single-cylinder 350cc four stroke M.A.G. engine, chain / chain drive, three or four speed gearbox, Zenith carburettor, magneto ignition. Tubular frame with parallelogram forks, rigid rear.
Maximum speed: 85 km/h.

1926 Monet & Goyon 350cc type MCS, MCSC 1927 MCSC2 1928
Single-cylinder 350cc four stroke M.A.G. engine (MCS & MCSC OHV, MCSC2 IOE).
chain / chain drive, three or four speed gearbox, Zenith carburettor, magneto ignition. Tubular frame with parallelogram forks, rigid rear.
The MCSC had 200mm drum brakes and 105 km/h top speed.

1932

Monet & Goyon 350cc type MG35 1931-1932, MG35L Luxe 1932

Introduced at the Paris Show in 1930, the machine had a unit-construction wet sump 350cc SV engine by Monet-Goyon with a 3-speed gearbox, 3-ring piston and aluminium cylinder head. It was fitted with a Gurtner carburettor, flywheel magneto, and a QD rear wheel of unusual construction.

Max speed 90 km/h.

Optional lighting kit. Later models had a different flywheel.


1928 to 1934.

Monet & Goyon 350cc Model G Super-Sport, and GA. (1933-34)
Single cylinder OHV M.A.G. Type 1C14H engine, with separate three-speed gearbox. Magneto ignition, Amac carburettor, parallelogram forks with rigid rear. Saddle tank holds 11.5 litres, oil tank 3.5 litres.
Max speed 100 km/h.

The GA model had a variety of improvements including lubricated valves and an optional Albion 4 speed gearbox with foot-operated gear selector. It became the CSG model for 1935-1957.


1935 to 1937

Monet & Goyon 350cc MAG type CSG

The CSG replaced the G and GA models and is 10kg lighter, 130kg as opposed to 140kg for the GA. It has the same single cylinder OHV M.A.G. Type 1C14H engine, with separate three-speed gearbox with hand-change on tank or foot control by gear lever. Magneto ignition, MAG carburettor, parallelogram forks with rigid rear. Saddle tank of 11 litres capacity, oil tank 2.2 litres.

Max speed 135 kh/h.

Optional luggage rack and lighting.


1933-1936
Monet & Goyon 350cc type ML4 1933, M4 1933-1936

Single-cylinder side-valve 350cc Monet-Goyon unit-construction engine with three-speed gearbox, with Gurtner carburettor and magneto ignition. Saddle tank of 10 litres capacity, tubular frame with parallelogram forks which had a large tyre pump mounted on the left, rigid rear end. Aluminium fishtail muffler. The M4 valanced mudguards and more chrome than the ML4.

Wheels and tyres: 26 x 3.50 front and rear.

The M4A was tested by the military in 1933, but a contract with the armed forces was not forthcoming. The similar L4A was later accepted.

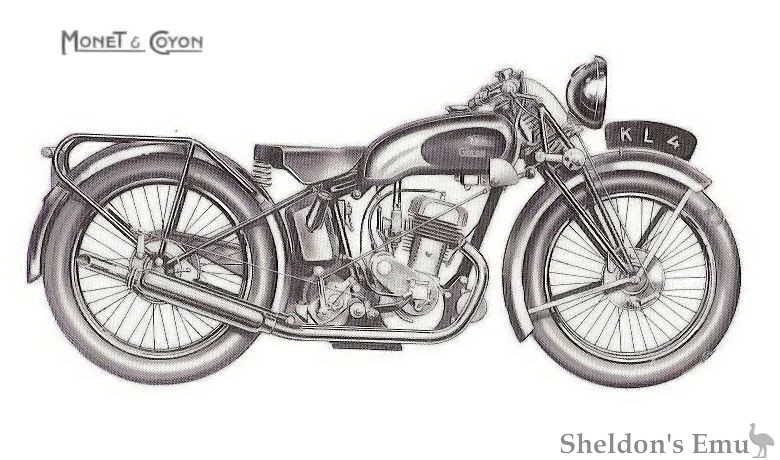

1934-1935 L4

Monet & Goyon 350cc type L4 1934-1935, AL4 Lateral Tourisme 1936-1937, AL4SA Luxe 1937 (Champion de France, with rear suspension)

Monet-Goyon single-cylinder 350cc sidevalve engine with separate 3-speed type DD gearbox, Amac or Gurtner carburettor. The exhaust muffler was of cylindrical styling, rising from below the gearbox on the left side at an angle of roughly 20 degrees.

Maximum speed: 95 km/h.

Options included enamel paint schemes, chromed tank and guards and stainless spokes.


1936-1942 L4, LS4

Monet & Goyon 350cc type L4P 1936, PL4 1937-1942

Monet-Goyon single-cylinder 350cc sidevalve engine with separate 3-speed gearbox, Amac or Gurtner carburettor.

Weight 110 kg, tyres 26 x 3.25 front and rear.

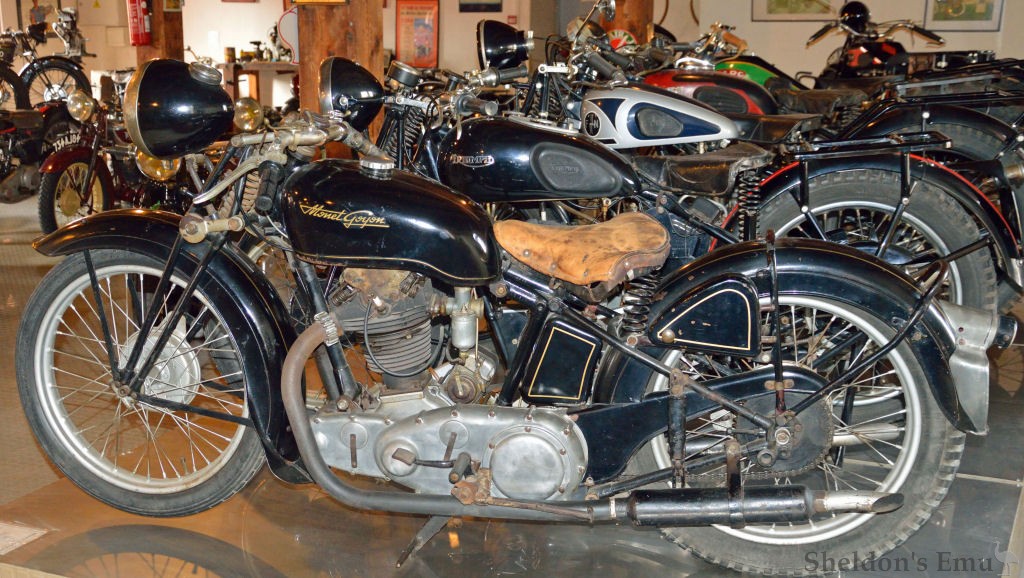

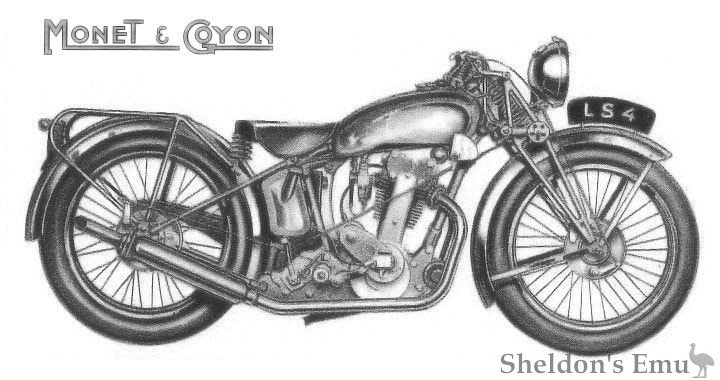

1934-1935 LS4S LS4L

Monet & Goyon 350cc type LS4S / LS4L 1934-1935, LS4C 1935, LS4P 1936 PLS4 1937-1942

345cc Monet-Goyon OHV engine with dual exhaust ports, three-speed gearbox type DD (4-speed on the PLS4), slightly inclined cylinder
Morel magneto, Brakess 170 mm.
Parallelogram forks and rigid tubular frame

Tyres 26 x 3. 25 F&R.
Weight : 129 Kg - Maximum speed: 115 km/h (125 for the PLS4)


1937-1938 ALS4

Monet & Goyon 350cc type ALS4 1937-1938

Inclined 350cc OHV engine dry sump with separate four-speed LSS type gearbox, dual exhaust ports, dry sump, parallelogram forks in rigid frame. The ALS4SA Champion de France had as rear suspension.


1935 L4A

1935 Monet & Goyon 350cc type L4A Militaire

Single-cylinder 350cc sidevalve engine with separate 4-speed gearbox, carburettor Gurtne, magneto ignition.

Parallelogram forks in rigid frame, sidecar mounts.

The French military order 1500 units.



Monet & Goyon 500cc type MC5 1927
486cc M.A.G. IOE (semi-culbuté), separate 3-speed gearbox, chain / chain drive, magneto ignition, Amac carburettor, parallelogram forks in rigid tubular frame
Maximum speed: 100 km/h


1927 Monet & Goyon 500cc type MCS5

486cc M.A.G. type 1C9H with 3-speed Monet-Goyon Type V gearbox, AMAC TT carburettor, Magneto France ignition, parallelogram forks in rigid tubular frame.

Maximum speed: 128 km/h


1927 - 1933 Monet & Goyon 500cc type H, HA 1933 - 1935 Super Sport

486 cc M.A.G. OHV with separate 3-speed close-ratio gearbox, AMAC carburettor and magneto ignition. The parallelogram forks are mounted on a rigid tubular frame with tandem front downtubes with a
flat tank mounted between two upper frame rails. A saddle tank was fitted as early as 1929.

Tyres: 26x 3.25, expanding drum brakes 200mm, dual exhaust ports with fishtail mufflers or abbreviated removable exhaust canisters.
Lighting optional on early models.


Monet & Goyon 500cc type K 1928-1932, KA 1933 to 1935.

486cc M.A.G. IOE, separate 3-speed or optional Albion 4-speed gearbox, parallelogram forks in rigid tubular frame similar to that of the H & HA model, as is the tank, with a full saddle tank fitted ca 1931.
Electric lighting standard.
Max speed 110 km/h.


1936 CSK

1936 Monet & Goyon 500cc type CSK

486 cc M.A.G. engine from the 500cc type KA


1936 CSH Monet & Goyon 500cc type CSH 1936 (or 1935)

486 cc M.A.G. IOE engine with separate 3-speed or optional 4-speed gearbox in a single-downtube rigid frame with parallelogram forks. The motorcycle was developed using chassis parts from the LS5 and the engine from the HA.


1935-1938 L5 Monet & Goyon 500cc type L5 Lateral Tourism and L5P, 1935 to 1938. (Koehler-Escoffier KL5L)

487 cc single cylinder SV Monet-Goyon engine with separate 3 speed gearbox (4-speed gearbox with LSS type), Gurtner carburettor, rigid tubular frame with parallelogram fork. Sculptured 16 litre fuel tank, 180 mm drum brakes.
Weigth 140kg, max speed 100 km/h.
Optional rear suspension on Luxe version.




1935-1938 LS5

Monet & Goyon 500cc LS5, LS5L, LS5P

LS5: 487cc single-cylinder four-stroke OHV engine by Monet-Goyon
Cast iron cylinder head with dual exhaust valves, AMAC or Gurtner carburettor, magneto igniton
Tubular rigid frame (primitive plunger rear suspension on some late models)
Weight 150 Kg, maximum speed: up to 130 km/ h depending on configuration. A competition LS5C achieved 140 km/h.


1935 LS5S

1935 Monet & Goyon 500cc type LS5S Super-Sport

The LS5S had a 487ccc Monet-Goyon OHV engine with a separate foot-operated four-speed gearbox

Cast iron cylinder head with dual exhaust valves, AMAC or Gurtner carburettor, magneto ignition

Suspension by parallelogram forks with plunger style at rear.

Max speed 130-135 km/h.


1936-1939 ALS5

Monet & Goyon 500cc type ALS5 1936-1939

The ALS5 had a 487ccc Monet-Goyon OHV engine with a separate foot-operated gearbox. It weight 150kg and some versions could attain 135 km/h.

From 1937 the Luxe version had plunger rear suspension and was deemed the ALS5SA Champion de France (SA denotes rear suspension).



Monet & Goyon 500cc Militaire types L5A 1936, L5A1 1939, L5A2 1940

The L5A had a 487cc single-cylinder side-valve engine and separate 4-speed gearbox with hand-change on the tank, and was equipped with a Morel magneto. The rigid tubular frame had parallelogram forks, 350 x 19 or 26 x 3.50 tyres and a fuel tank of 15 litres capacity.

It was available with Bernardet or Monet-Goyon sidecar.

Over 1600 of the L5A were delivered to the French military. The L5A1 was sold as a 4-speed civilian version during the occupation.


1932-1937
Monet & Goyon M11 1932-1937
Velomoteur M11, M11SP, M11D (Dame)
98cc Villiers 2-speed BMA
Tyres: 600 x 55
Max speed 60 km/h


Sources: monet-goyon.net, Cyclememory.org, lva-moto.fr

If you have a query or information about Monet-Goyon motorcycles please contact us
