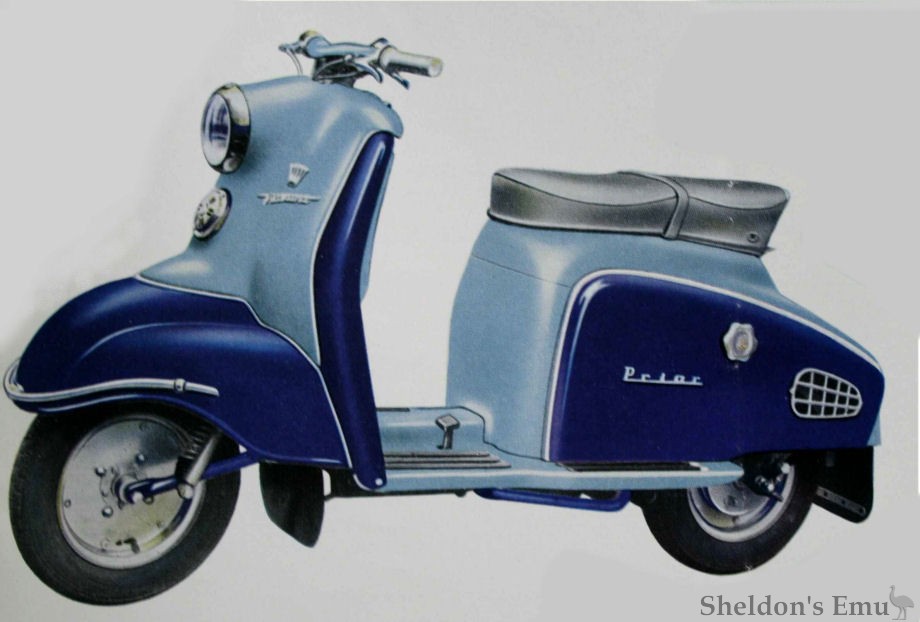

Prior Viscount Specifications | |
|
Engine |
Sachs 200L-AZL single cyl. fan cooled |
|
Output |
10.2 bhp at 5,250 rpm |
|
Swept Volume |
191 cc |
|
Comp. Ratio |
6.3 : 1 |
|
Bore & Stroke |
65 x 58 mm |
|
Lubrication |
By petroil mixture 25 to 1 ratio |
|
Clutch |
4 plate in oil bath |
|
Gear Box |
4 speed, foot operated |
|
Ratios |
Bottom 1 : 3.22, Second 1 : 1.85 Third 1 : 1.24 Top 1 : 0.95 |
|
Main Drive |
By fully enclosed chain |
|
Tyres |
3.50" x 10" front and rear |
|
Suspension |
Front leading link Rear pivoted fork |
|
Brakes |
Mechanical, foot operation to rear wheel hand operation to front wheel. Braking surface 10 sq. ins. |
|
Electrical |
Headlamp with parking light, combined stop and rear lamp, 12 v. System with two 6 v. batteries, coil ignition, electric starter |
|
Fuel Capacity |
21/2 gallons incl. 1/4 gallon reserve |
|
Dimensions |
Wheel base 54" Overall length 75" Overall width 25" Overall height 40" |
|
Kerb Weight |
317 Ibs |
|
Max. Speed |
65-70 mph |
