Montesa 1967 Trials
Carlo Ramella and Justyn Norek wax lyrical.
Dr Garino's Monty
Derbi models of the 1950s had Jawa engines. In the early 1960s they built their own engines based on the Sachs 65cc. These were of 49cc and 74cc.

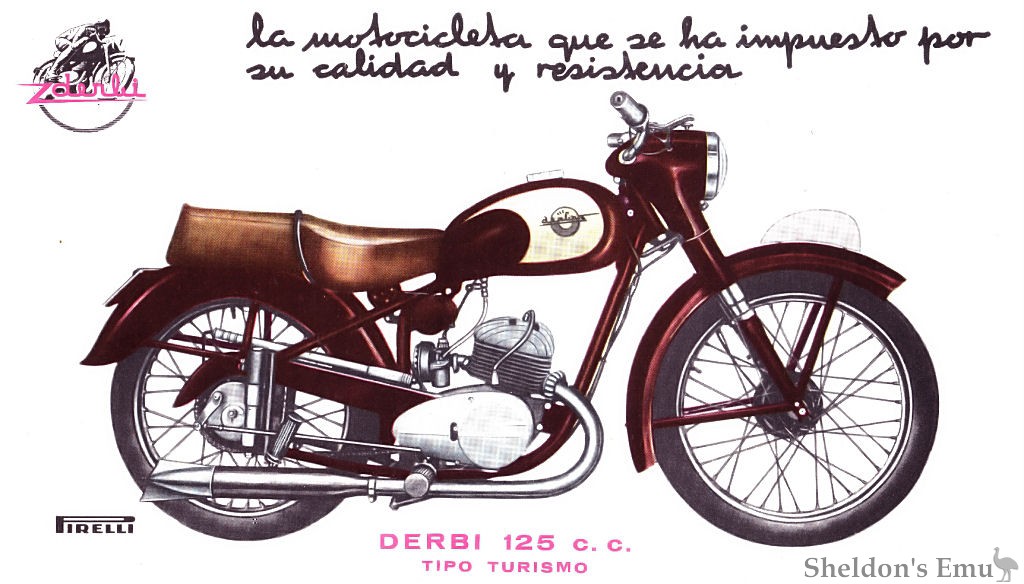

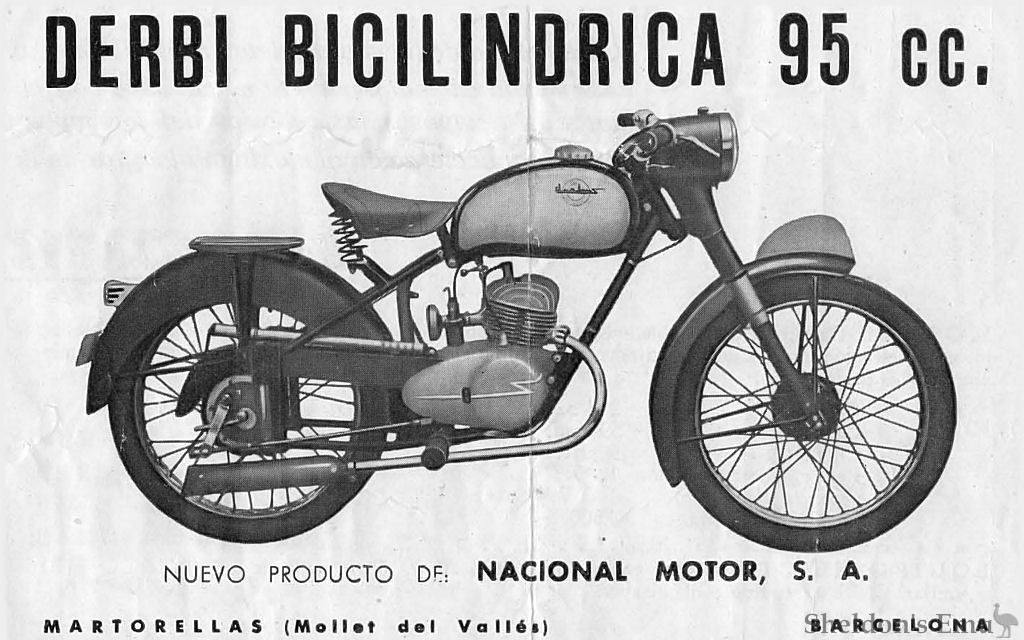

Earlier Derbi Models include:
Later Derbi Models include:
Carreras Cliente
50cc racers 1964-1968.
These were produced in two series, the first appearing in 1964. Some 100 examples were built, and used a the chassis, tank, seat and fairing derived from their "Gran Sport" roadster model. The second series differed in many respects, and only about 20 were constructed.
Derbi 1965 49cc Carrera Cliente
Derbi 125 Cross 1980
Engine
Air-cooled 2-stroke single-cylinder. Bore x Stroke: 54 x 54 mm, 123.6 c.c. Power: 27 hp at 10,500 rpm. Torque: 2.13 kgf·m at 9,700 rpm. Carburettor: Bing 34 mm. Six-speed gearbox. Cable-actuated clutch. Kickstarter.
Chassis
Frame: Steel double cradle. Fork: Bétor. Travel: 300 mm. Rear suspension: Bétor shocks. Travel: 300 mm. Brakes: front 130 mm drum. Rear 130 mm drum. Weight: 89 kg dry. Fuel capacity: 7 litres.
